Battery Box - 12s6p Molicel P42A
$999.00 CAD
On sale

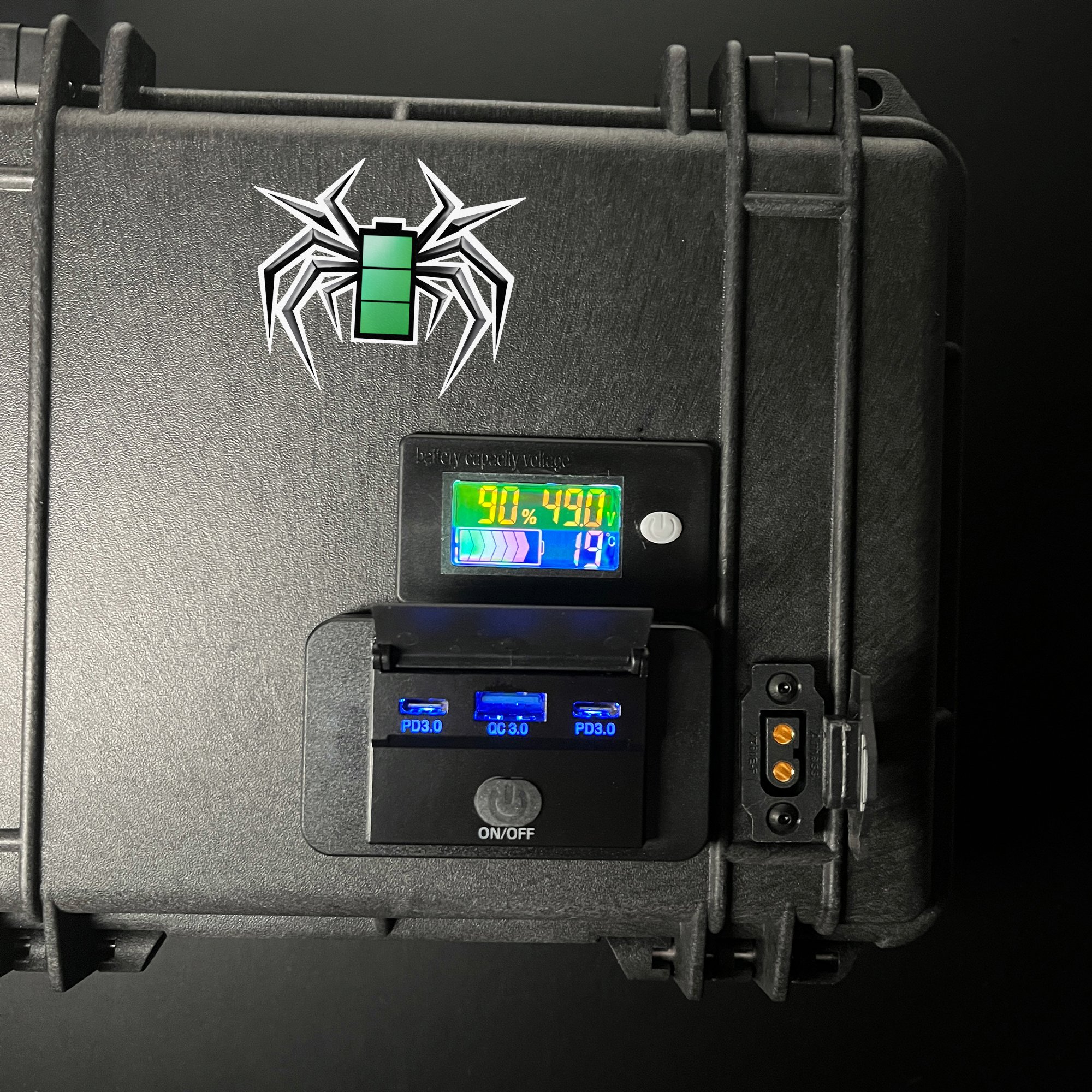

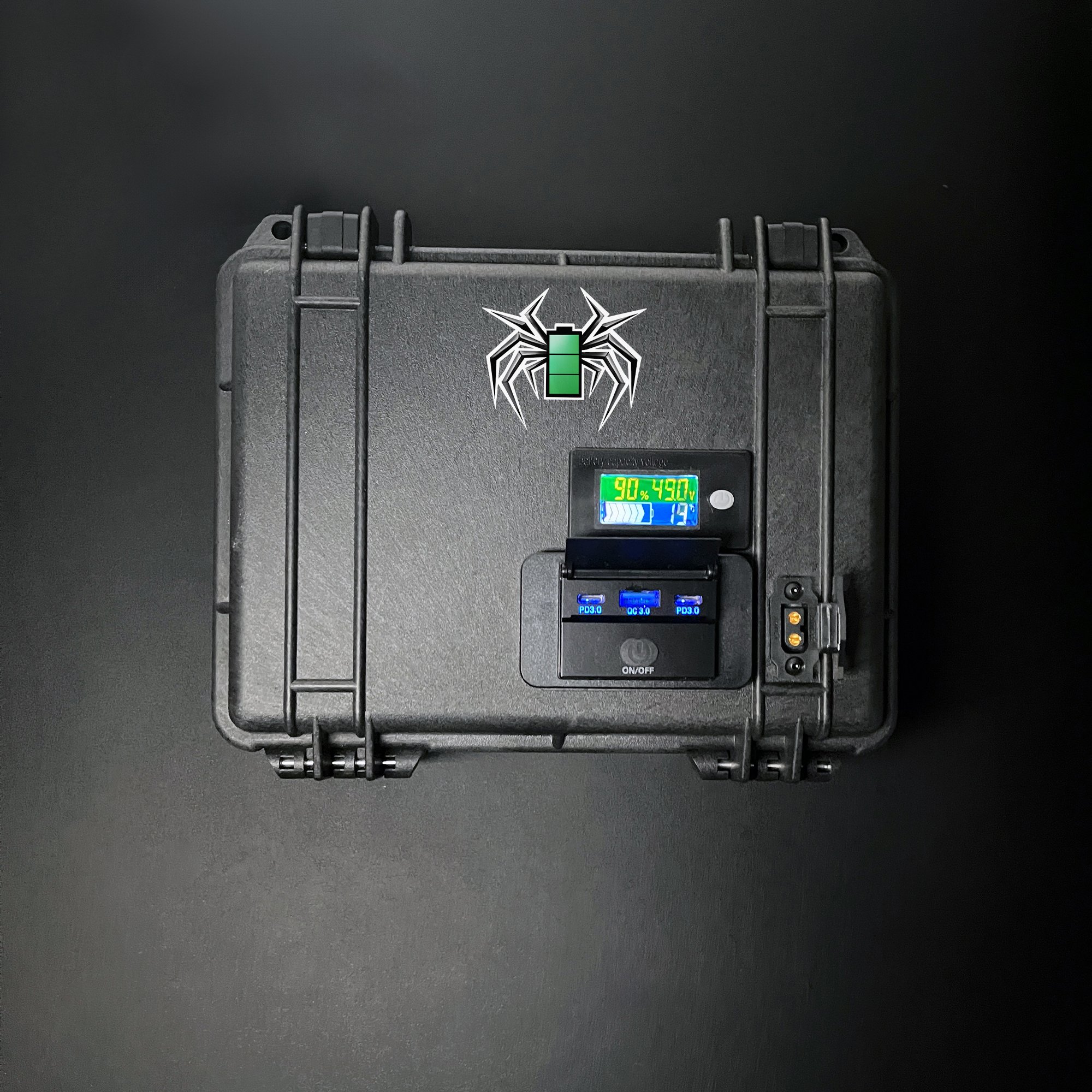

Built in a tough Pelican case, this battery box comes with a display screen, USB-C charging, and a Bluetooth BMS for easy monitoring.
What's Included:- Battery Box
- Charger
- XT90 extension power cable
Specs: P42A
| Cell: | Molicel P42A 4200mAh |
| Max Voltage: | 50.4V |
| Capacity: | 907Wh – 25.2Ah |
| Discharge Connection: | XT90S Female |
| Charge Port: | XT60 |
| Max Charge Current: | 20A |
| Max Discharge: | 270A |
Case External Dimensions
| Pelican 1200 | 10.6" x 9.7" x 4.9" (27 x 24.6 x 12.4 cm) |
Other Features:
- Battery monitor screen installed on the top lid that displays battery percentage, voltage, and cell temperature.
- Modular power harness that integrates all components seamlessly, ensuring they cannot be connected incorrectly and allowing for easy removal of all parts.
- Supports discharge bypass (BMS for charging only).
- Features a Smart BMS with Bluetooth capability.
- Allows user-replaceable charge port fuse.
BMS App:
- iOS: Xiaoxiang BMS
- Android: Overkill Solar
Built and shipped from Canada 🇨🇦
