Surron 60V Battery | 51ah/60ah

Current Shipping Time: 1 week

All batteries are made with a QS8 connector and come with a QS8 wiring harness for the bike.

-Compatible with the stock charger

Includes:
-Battery
-Modified Hardware for Battery Lid
-QS8 Bike Power Harness

Video Install Guide

Specs:
-Cell: LG M50LT 5000mah
-Configuration: 16s12p
-Max Voltage: 67.2V
-Capacity: 3456Wh / 60Ah
-Peak Power: 10,000W
-Max Discharge: 172a
-Max Charge Current: 20A
-Charge Port: Stock Surron LP20 3 pin

Specs:
-Cell: Molicel P42a 4200mah
-Configuration: 16s12p
-Max Voltage: 67.2V
-Capacity: 2937Wh / 51Ah
-Peak Power: 25Kw-32Kw
-Max Discharge: 420A-540A
-Max Charge Current: 20A
-Charge Port: Stock Surron LP20 3 pin

Other Features:
-Works with stock charger (3 pin LP20)
-Discharge is bms bypassed for full, uninterrupted power (BMS is for charge only)

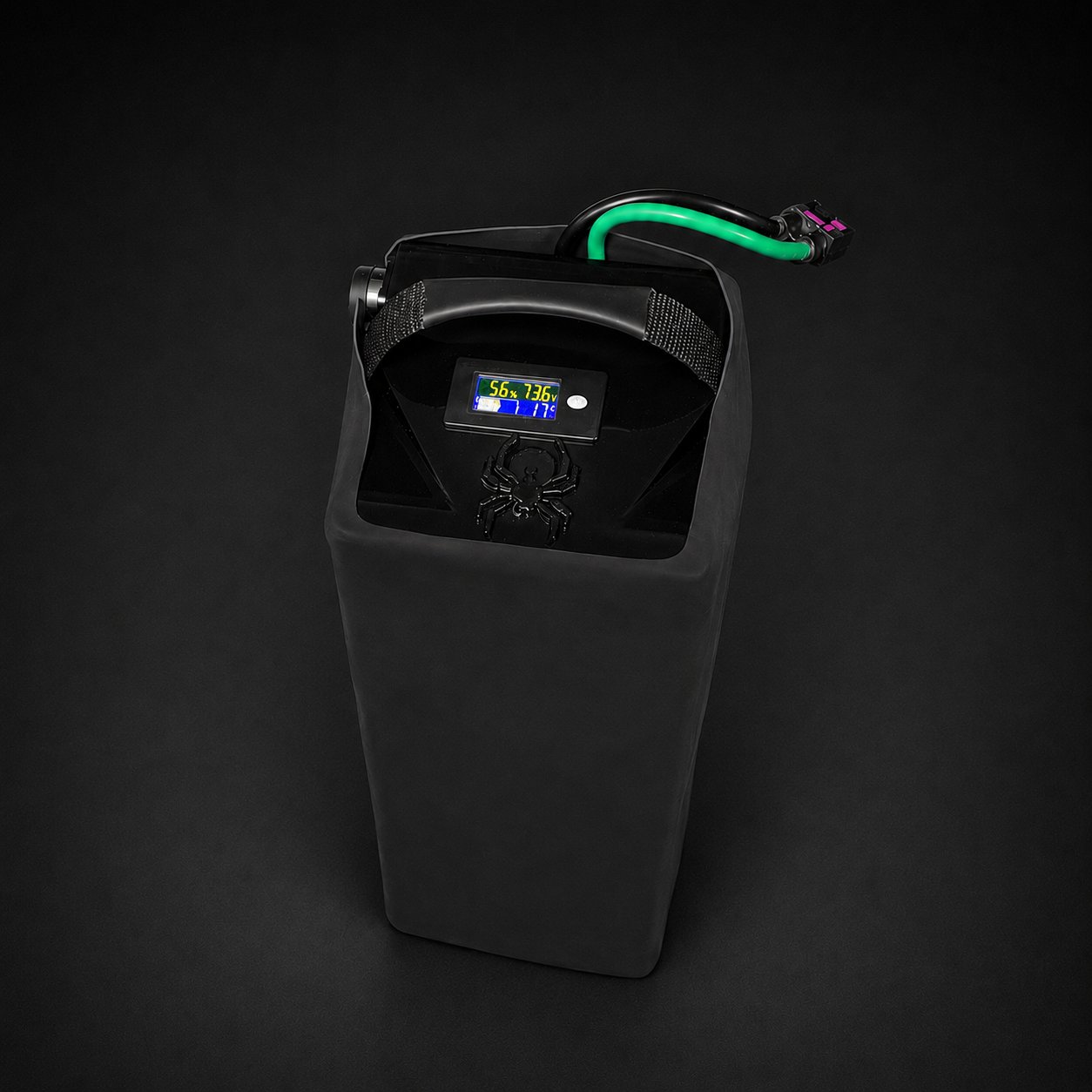

-Battery monitor screen installed on the top lid that displays battery percentage, voltage, and cell temperature.
-Smart BMS with bluetooth monitoring.
-The LP20 charge port seamlessly blends into the battery's side, providing a quick and neat interface for charging.

Dimensions:
Height: 16.5" (419mm)
Width: 5.7" (147mm)
Length: 6.2" (157mm)

Built and shipped from Canada 🍁

BMS App
IOS - Xiaoxiang BMS - https://apps.apple.com/ca/app/xiaoxiang-bms/id1375405426
Android - Overkill Solar - https://play.google.com/store/apps/details?id=com.marchingband.overkillsolar
