Image of Surron 72V Compact Battery

Surron 72V Compact Battery

$2,840.00 CAD - $2,950.00 CAD

Orders ship in 2 weeks or less from the date of purchase.

All batteries are made with a QS8 connector and come with a QS8 wiring harness for the bike.

Includes:
-Battery
-4A Charger

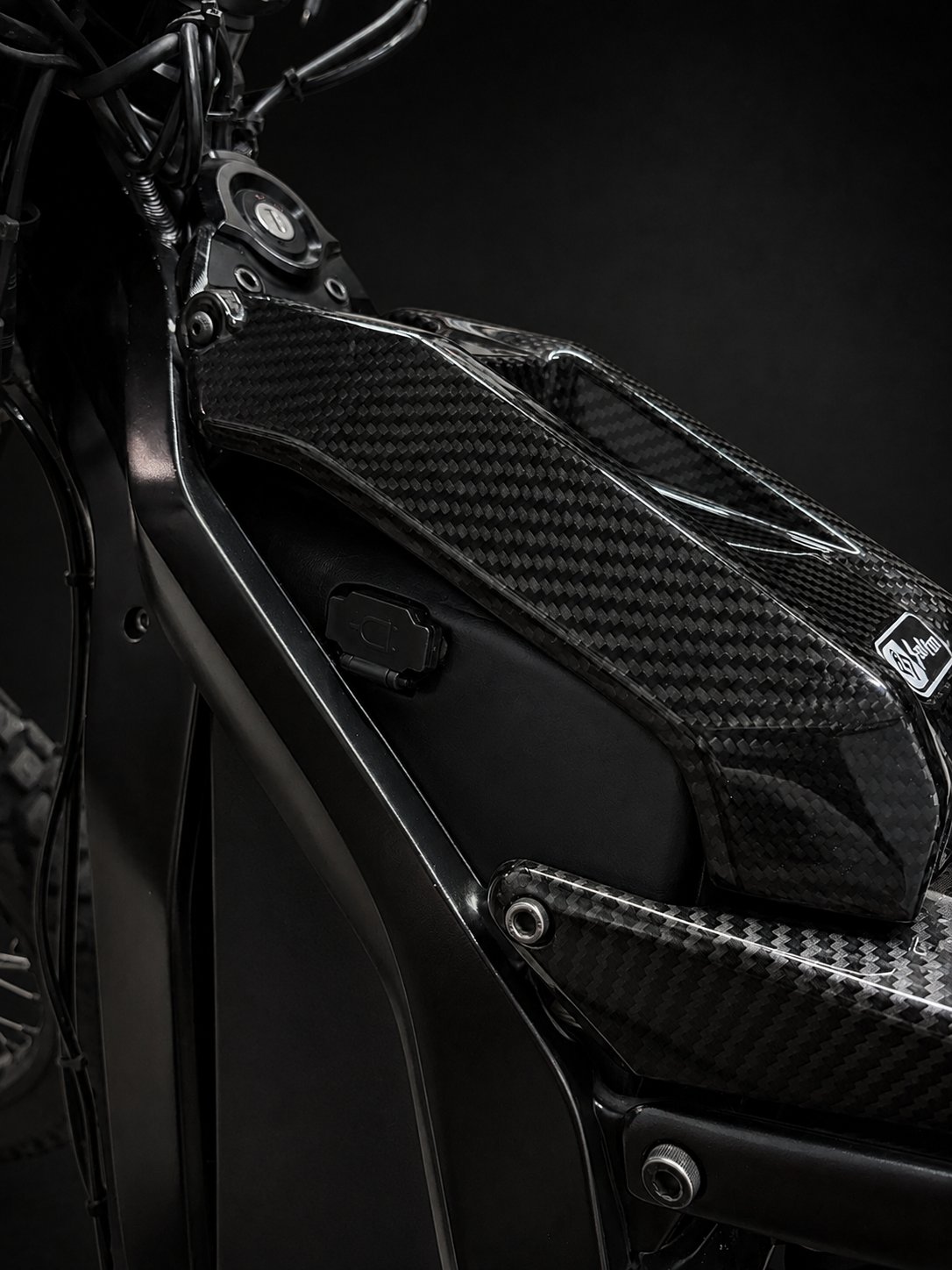

-Modified hardware for battery lid

Video Install Guide

Specs:
-Cell: LG M50LT 5000mah
-Configuration: 20s9p
-Max Voltage: 84V
-Capacity: 3240Wh / 45Ah
-Rated Power: 9200W
-Max Discharge: 129A
-Max Charge Current: 20A

Specs:
-Cell: Molicel P42A 4200mah
-Configuration: 20s9p
-Max Voltage: 84V
-Capacity: 2745Wh / 37.8Ah
-Rated Power: 22,000W
-Max Discharge: 270A-360A
-Max Charge Current: 20A

Other Features:

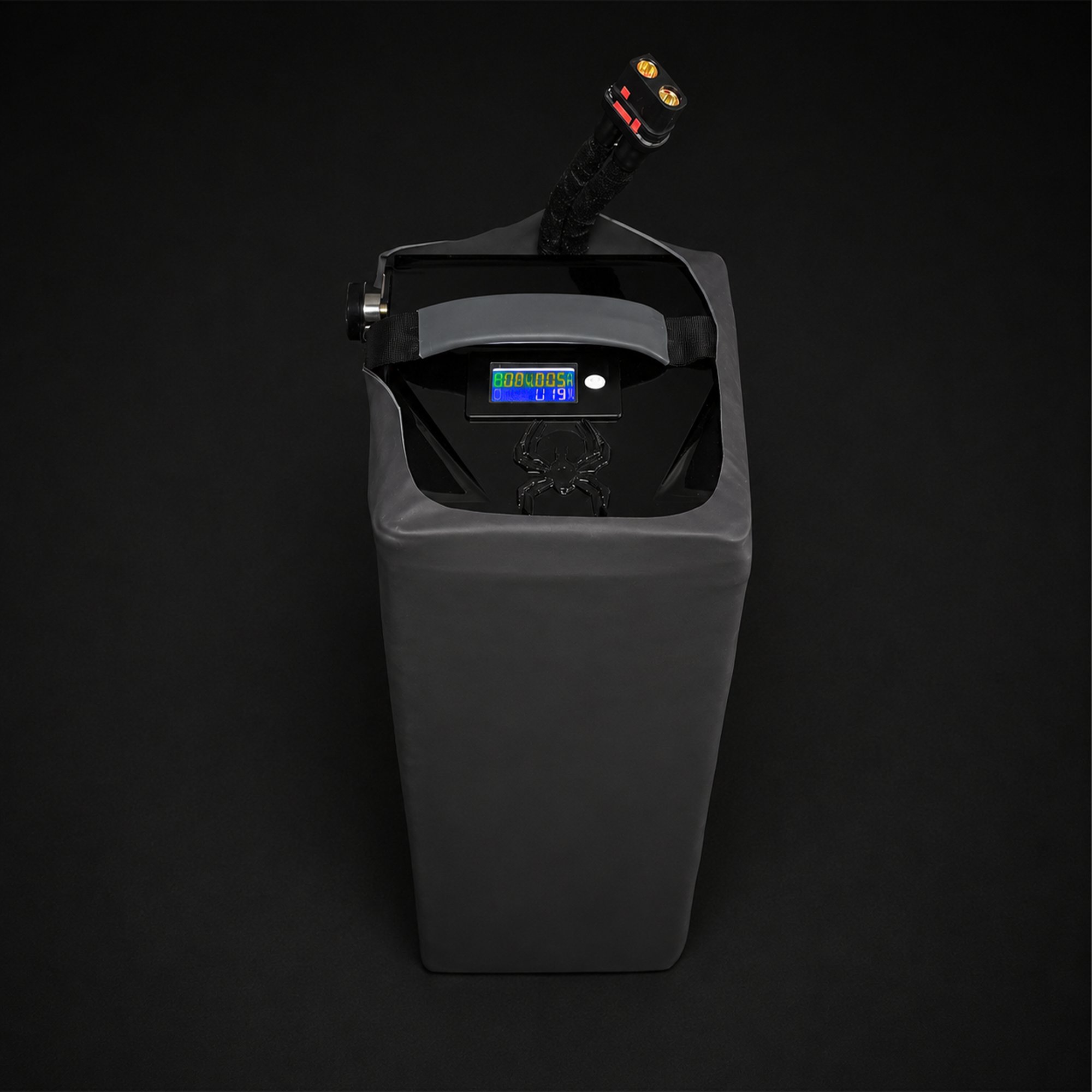

-Battery monitor screen installed on the top lid that displays battery percentage, voltage, and cell temperature.
-Discharge is bms bypassed for full, uninterrupted power (BMS is for charge only)
-Smart BMS with bluetooth monitoring.

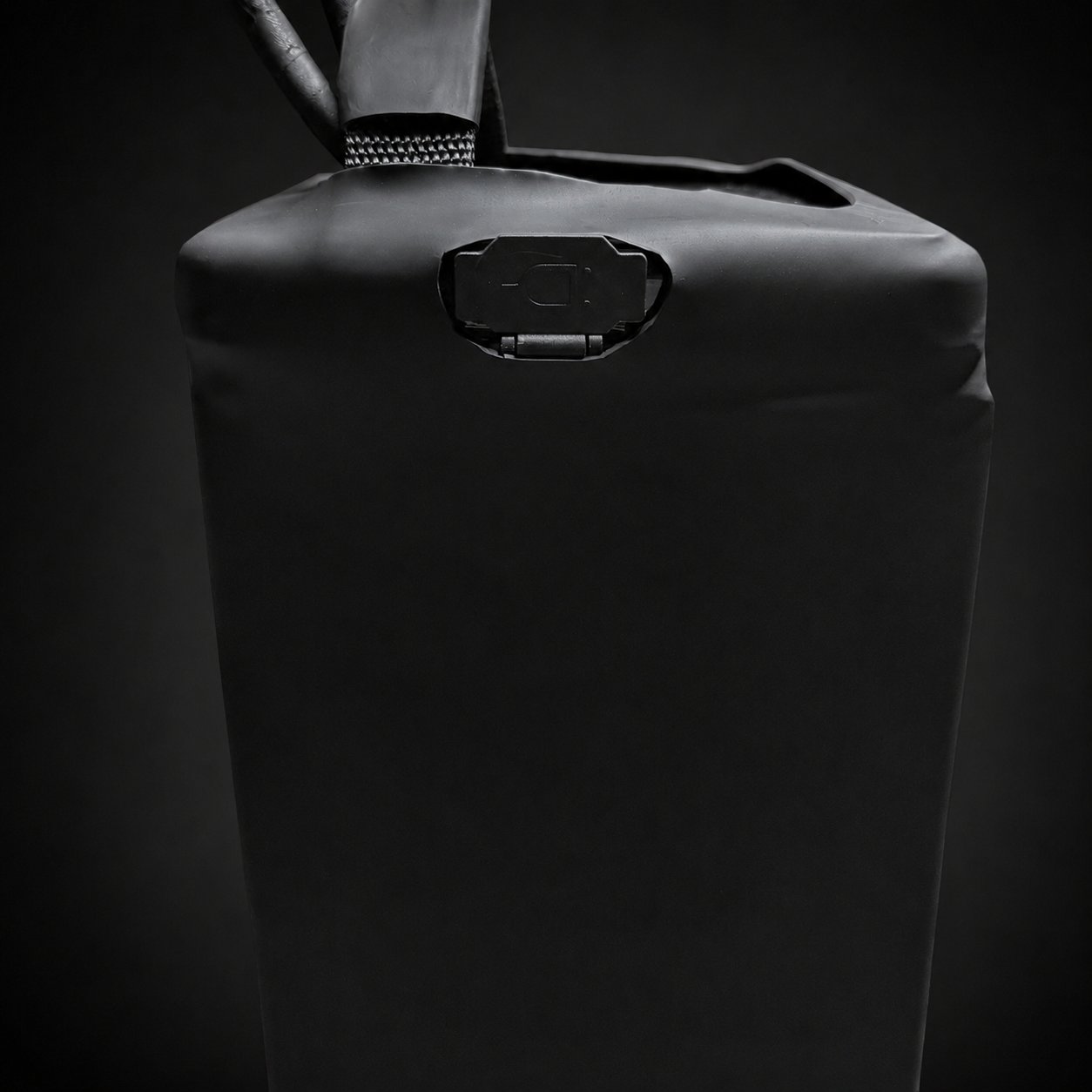

-LP20 charge port is conveniently integrated into the side of the battery, allowing for quick and easy insertion of the charger.

Dimensions:
Height: 15" (381mm)
Width: 5.7" (147mm)
Length: 6.2" (157mm)

Built and shipped from Canada 🍁

BMS App
IOS - Xiaoxiang BMS - https://apps.apple.com/ca/app/xiaoxiang-bms/id1375405426
Android - Overkill Solar - https://play.google.com/store/apps/details?id=com.marchingband.overkillsolar
