Surron Ultra Bee Communication Port Adapter
$120.00 CAD
This essential module is required so you can use your stock controller with non-stock or custom battery packs, and is also necessary when using aftermarket controllers with aftermarket batteries, providing the 12V signal required for the bike to turn on and operate normally
Installation:
Connect the red ring terminal to the positive (+) and the black ring terminal to the negative (–) main battery leads that attach to your controller. Then plug the 8‑pin connector into your bike’s communication cable and tuck the wires away.

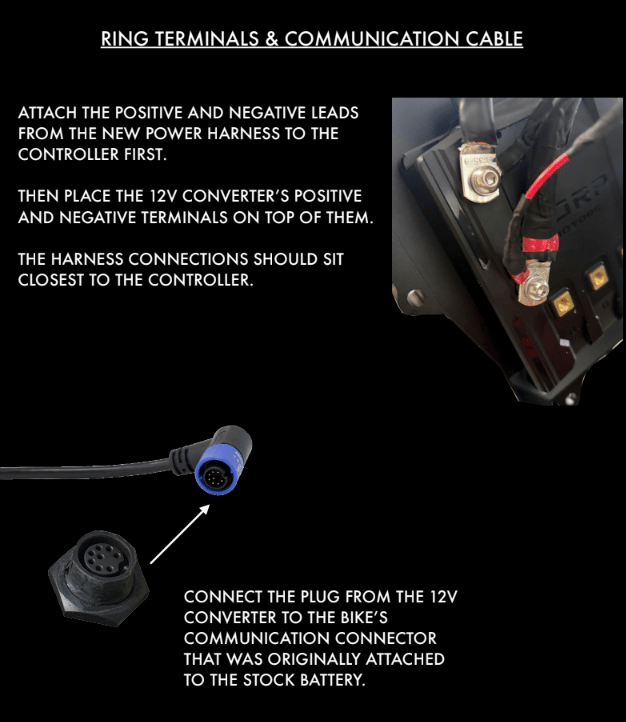

Make sure these ring terminals are positioned on top of the existing battery terminal connections (refer to the second photo)
